AEW&C

Grid Details:

 Volume Cells   3,252,352 
 Surface Elements   138,800 
 Blocks  1946 
 Time to generate the grid (by expert)   ~ 1 day 

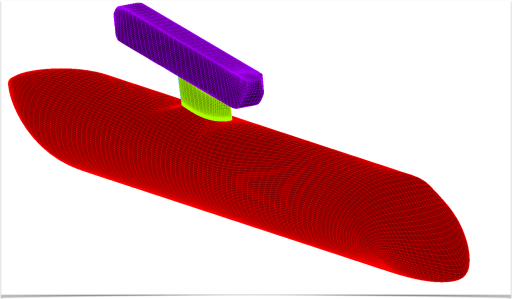

“description Overview of the grid for AEW&C description here

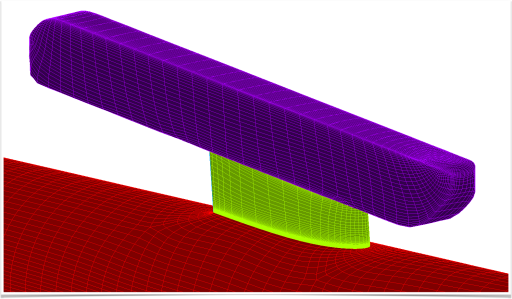

Grid on the pylon and antenna



“description

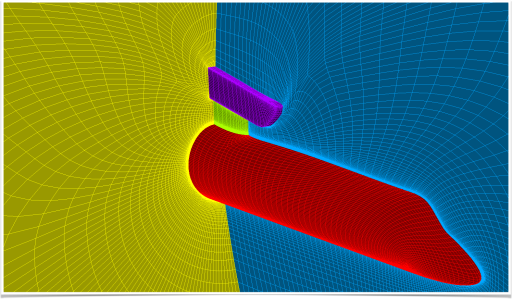

Grid on the symmetry plane around the aircraft
description here

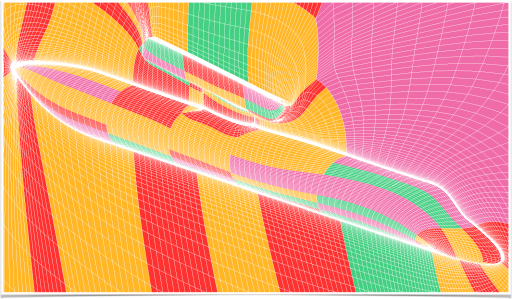

Block wise grid representation



description here

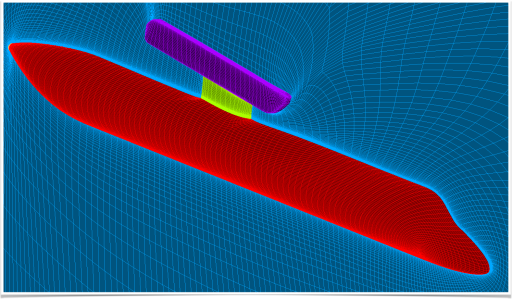

Grid in the near field
description here

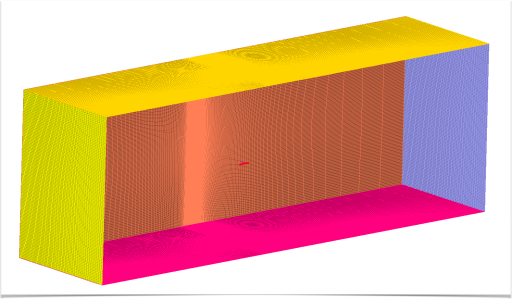

Entire computational domain



description here
Multi-blocks used to generate the grid
